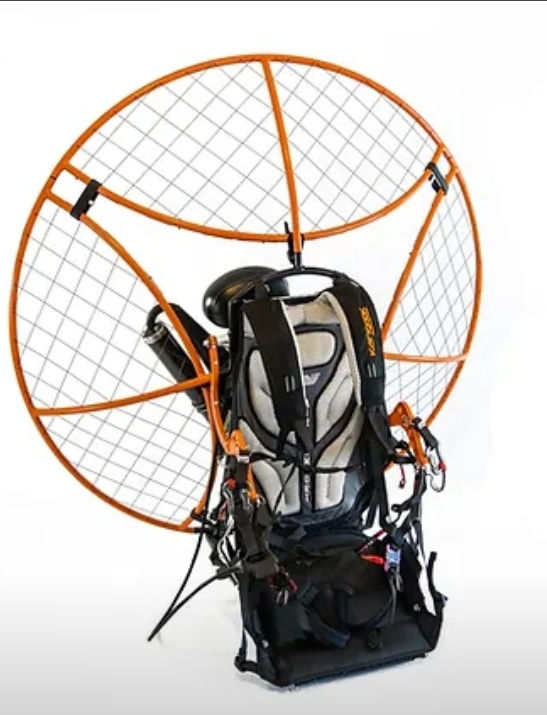

Kangook Viking

The Kangook Vikking
Starting at $6,009!
​
The Kangook Vikking is the most affordable frame offered, but don't mistake value for cheap quality.  The simple yet effective frame offers high strength at a low weight. The Vikking is available in a 132cm cage allowing the use of propellers up to 125cm and a 146cm cage allowing the use propellers up to 135cm!

The Kangook Vikking 132 starts with a unique frame used only on the Vikking 132 model. The frame can be configured for direct engine attachment or the multi fit engine mount which utilizes an engine adapter specific to the engine of choice. The multi fit frame can be refitted for a different engine at any time by replacing the engine adapter.
​
The Kangook Vikking 146 utilizes the same "classic" frame used on the Phoenix K2 as well as the Classic allowing to be converted to the 146cm version of those models at any time!

The Vikking frame allows for the use of all Kangook swing arm options and can be converted between options at any time. These include:

-Aluminum J-bars
-Stainless Steel J-bars
-Low Swing Arms
-Intermediate Arms
-High Swing Arms
-CNC Swan Neck Arms
-Stainless Steel Tubular Swan Neck Arms
-Fixed Swan Neck Arms

The cage of the Vikking can be upgraded with the Kangook Protect option offering the enhanced safety afforded through better netting coverage. The 3-piece hoops are secured to the frame with straps and to each other with high strength Velcro.  They can be installed or removed in less than 2 minutes making transport to the field a breeze regardless the type of vehicle.

The Kangook Vikking offers impressive torque compensation coupled with amazing weight shift!  Torque compensation is accomplished using a simple spacer, placed depending on the rotation of the propeller.  This is a simple yet effective way to minimize turning tendencies cause by the engine torque.

The Kangook Vikking is finished with a durable powder coat finish.  The center frame is finished in black while the hoop sections are available in orange or black upon request.  The netting is also available in either orange or black colors.  The stainless-steel swing arms are finished in matte silver and the aluminum CNC swan neck arms come standard orange with black available upon request.
​
Like all Kangook Paramotors, the Vikking is constructed entirely from 6061 T6 aviation grade aluminum.  Fully welded frames are strong and have very few if any nuts, bolts, rivets or any other type of fastener.  Fewer fasteners mean less worry of parts shaking loose from the vibration of a single cylinder engine and departing your frame and flying through your propeller.

To top all of that off, all Kangook Paramotors comes standard with your choice of diameter carbon E-Prop or Helix!
​
Vikking 132
The weight with Atom 80 is only 46.5 lbs (21.1 kg)
The weight with the Moster 185 is 55.1 lbs (25.0 kg)
​
Vikking 146
The weight with Atom 80 is only 47.3 lbs (21.5 kg)
The weight with the Moster 185 is 55.9 lbs (25.4 kg)
​
All Kangook Paramotors come with the following warranty covering manufacturing defects:
​
Engine: 1 year
Frames: 3 years
Cages: 3 years
Harness: 3 years
Vikking Features
Hoop Symmetry
All three hoop sections on the Vikking are the same and can be interchanged.
Kangook Vikking 132 Frame
Kangook Vikking 132 Frame
Kangook Vikking 132 Hoops
Kangook Vikking 132 Hoops
2/8
Quality Without Compromise
Simple and yet to the point.  The Kangook Vikking is the most affordable way to take to the air!  The durable frame is constructed of heavy duty tube providing ruggedness while still being light.  Like all Kangook Paramotors, the frame is constructed 100%  in Canada with rigorous inspection allowing us to offer a best in industry 3 year warranty on the frame!
Kangook Vikking 132
Kangook Vikking 132
1/3
Compatibility
Engines:
Vittorazi Moster 185 and atom 80
Polini thor 90, 130, 190, 200, and 202
Air Conception Nitro 200
Air Conception Tornado 280
Minari F1-M9
Cors-Air Black Devil

Swing Arms:
Stainless Steel Tubular Arms
Aluminum CNC Swan Neck Arms
​
Propeller Diameter:
120c, 125cm, 130cm
​
Harnesses:
APCO SLT
APCO Split Leg
Dudek Power Seat
​
​
​
Throttles:
Polini
Off Grid Aviation
​
Fuel Tank:
10 Liter (2.6 gallons)
16.5 Liter (4.3 gallons)

Trike:
Kangook Basik (please note the double hoop classic is a better trike frame)
Kangook KX-1 (please note the double hoop classic is a better trike frame)

Convertibility:
The Vikking 132 cannot be converted into any other Kangook model
The Vikking 146 can be easily converted into a Phoenix K2 146 or Classic 146 or Classic HD.
​
​
Specifications
Weights:

Vikking 132cm
10.7 lbs: Frame only weight
46.5 lbs : Complete w/ Atom 80
(132cm Vikking frame, Vittorazi Atom 80 MY'20, APCO SLT harness, SS tubular swing arms, 10L fuel tank, Polini throttle, 125cm E-Prop)
55.1 lbs: Complete w/ Moster 185 Plus:
(132cm Vikking frame, Vittorazi Moster 185 Plus MY'20, APCO SLT harness, SS tubular swing arms, 10L fuel tank, Polini throttle, 125cm E-Prop)
​
Vikking 146cm
11.5 lbs: Frame only weight
47.3 lbs : Complete w/ Atom 80
(132cm Vikking frame, Vittorazi Atom 80 MY'20, APCO SLT harness, SS tubular swing arms, 10L fuel tank, Polini throttle, 125cm E-Prop)
55.9 lbs: Complete w/ Moster 185 Plus:
(132cm Vikking frame, Vittorazi Moster 185 Plus MY'20, APCO SLT harness, SS tubular swing arms, 10L fuel tank, Polini throttle, 125cm E-Prop)
​
6061-T6 Aircraft Grade Aluminum
All fasteners are A2 Stainless Steel
​
Fuel Tank:  10 Liter or 16.5 Liter
​
Geometry:
30cm Frame depth
132cm or 146cm Height
132cm or 146cm Width
132cm or 146cm Hoop Diameter
