Kangook Phoenix K2 146cm

Kangook Phoenix K2 146cm

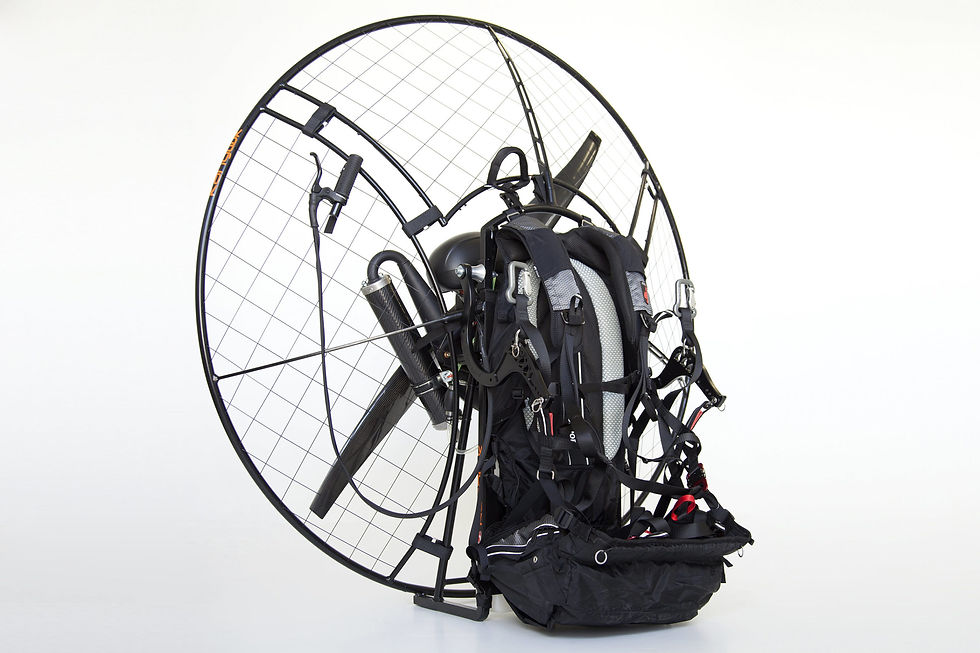

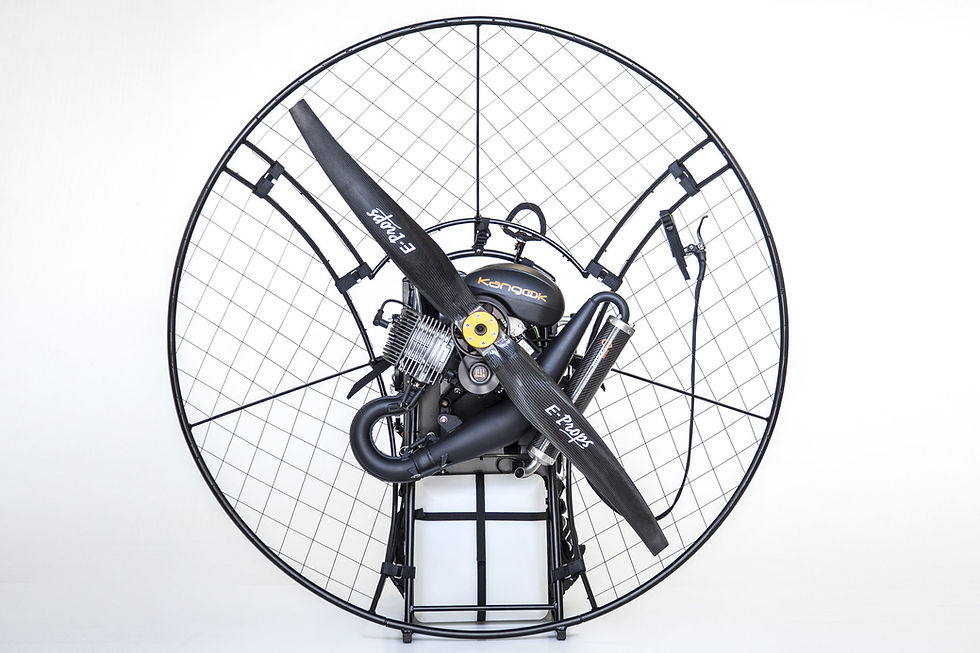

The Kangook Phoenix K2

Starting at $6,449!

The Phoenix K2 by Kangook Paramotors was introduced in December of 2019, in time for the start of the 2020 flying season. It features standard enhanced netting coverage, CNC cut spars on each of the hoop pieces, and is available in 132cm and 146 cm diameters.



The 132cm Phoenix K2 allows the use of propellers up 125cm.

The 146cm Phoenix K2 allows the use of propellers up 135cm.



Similar to the Kangook Classic, the Phoenix K2 starts with the classic center frame. The classic frame is available with two engine attachment possibilities. The direct engine attachment features engine mounting rails welded to the frame providing for the lightest possible paramotor. The other option is the multi fit frame. The classic multi fit frame features a generic mounting which utilizes an engine adapter specific to the engine of choice. The multi fit frame can be refitted for a different engine at any time by replacing the engine adapter.



The classic frame allows for the use of all Kangook swing arm options and can be converted between options at any time. These include:



-Aluminum J-bars

-Stainless Steel J-bars

-Low Swing Arms

-Intermediate Arms

-High Swing Arms

-CNC Swan Neck Arms

-Stainless Steel Tubular Swan Neck Arms

-Fixed Swan Neck Arms



The cage of the Phoenix K2 comes standard with the Kangook Protect option offering the enhanced safety afforded through better netting coverage. The single hoop design is also strengthened with attractive looking integral CNC spars .



The 3-piece hoops are secured to the frame with straps and to each other with high strength Velcro. They can be installed or removed in less than 2 minutes making transport to the field a breeze regardless the type of vehicle.



Have a single hoops but decide you want a double hoop? One of the greatest features of the Kangook Phoenix K2 is it’s ability to convert in a Kangook Classic! Converting is as simple as replacing the hoops as well as the foot section. No adjustments need to be made to the engine, harness, or swing arms and the entire transformation takes less than 2 minutes. Please note that due to differences in frame height, a 132cm frame cannot be made into a 146cm frame and a 146cm frame cannot be made into a 132cm frame.



The Kangook Phoenix K2 offers impressive torque compensation coupled with amazing weight shift! Torque compensation is accomplished using a simple spacer, placed depending on the rotation of the propeller. This is a simple yet effective way to minimize turning tendencies cause by the engine torque.



The Kangook Phoenix K2 is finished with a durable powder coat finish. The center frame is finished in black while the hoop sections are available in either orange or black. The netting is also available in either orange or black colors. The stainless-steel swing arms are finished in matte silver and the aluminum CNC swan neck arms come standard orange with black available upon request.

Like all Kangook Paramotors, the Phoenix K2 is constructed entirely from 6061 T6 aviation grade aluminum. Fully welded frames are strong and have very few if any nuts, bolts, rivets or any other type of fastener. Fewer fasteners mean less worry of parts shaking loose from the vibration of a single cylinder engine and departing your frame and flying through your propeller.



To top all of that off, all Kangook Paramotors comes standard with your choice of diameter carbon E-Prop or Helix!

The weight with Atom 80 is only 46 lbs (20.9 kg)

The weight with the Moster 185 is 51 lbs (23.0 kg)

All Kangook Paramotors come with the following warranty covering manufacturing defects:

Engine: 1 year

Frames: 3 years

Cages: 3 years

Harness: 3 years

Phoenix K2 Features

CNC Spars

Added strength and it looks pretty good too! Each cage piece utilizes a main CNC spar increasing the rigidity of the Phoenix K2 cage.

Convertable to the Classic!

Foot Launch the Phoenix K2 and Swap hoops for added protection while trike launching. As simple as swapping 3 hoop section and a the foot piece, you Phoenix K2 quickly transforms into a Classic!

Largest Possible Props

The 146cm Phoenix cage allows the use of propellers up to 140cm in diameter! Larger propellers mean greater efficiency, more thrust without greater fuel burn!

Compatibility

Engines:

Vittorazi Moster 185 and atom 80

Polini thor 90, 130, 190, 200, and 202

Air Conception Nitro 200

Air Conception Tornado 280

Minari F1-M9

Cors-Air Black Devil



Swing Arms:

Stainless Steel Tubular Arms

Aluminum CNC Swan Neck Arms

Propeller Diameter:

120c, 125cm, 130cm

Harnesses:

APCO SLT

APCO Split Leg

Dudek Power Seat

Throttles:

Polini

Off Grid Aviation

Fuel Tank:

10 Liter (2.6 gallons)

16.5 Liter (4.3 gallons)



Trike:

Kangook Basik (please note the double hoop classic is a better trike frame)

Kangook KX-1 (please note the double hoop classic is a better trike frame)



Convertibility:

The Amaruk cannot be converted into any other Kangook model

Specifications

Weights:

Phoenix K2 146cm

10.7 lbs: Frame only weight (146cm)

46.5 lbs : Complete w/ Atom 80

(146cm Phoenix K2 frame, Vittorazi Atom 80 MY'20, APCO SLT harness, SS tubular swing arms, 10L fuel tank, Polini throttle, 125cm E-Prop)

55.1 lbs: Complete w/ Moster 185 Plus:

(146cm Phoenix K2 frame, Vittorazi Moster 185 Plus MY'20, APCO SLT harness, SS tubular swing arms, 10L fuel tank, Polini throttle, 125cm E-Prop)

6061-T6 Aircraft Grade Aluminum

All fasteners are A2 Stainless Steel

Fuel Tank: 10 Liter or 16.5 Liter

Geometry:

43 cm Frame depth

132cm 146cm Height

132cm or 146cm Width

132cm or 146cm Hoop Diameter

    $6,449.00Price
